Neutron Instrumentation

Download the full program

Optical components

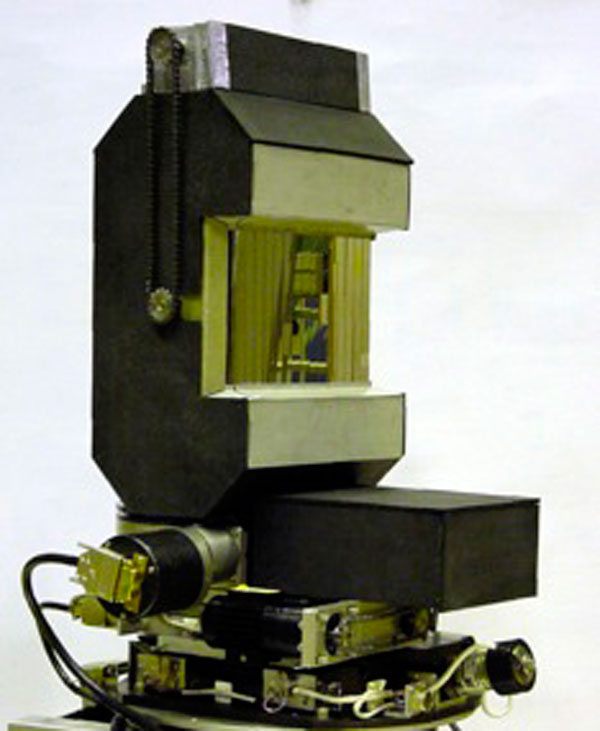

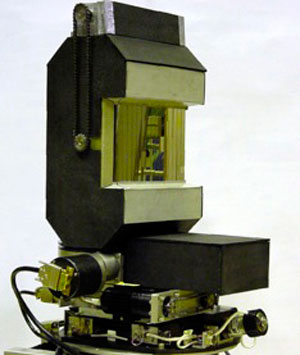

Monochromator Heusler

Magnetic field vertical to a horizontal focusing IN20B-ILL (Photo attached)

Heusler crystals - ILL Neutron optics


Monochromator and Analyzer

- IN22 - CEA Grenoble - Dr L.P. Regnault
- PANDA-FRM2 - Dr P. Link

Monochromator 2T

- CEA - LLB - Dr M. Hennion & Dr P. Bourges -
P. Boutrouille

Monochromator Graphite

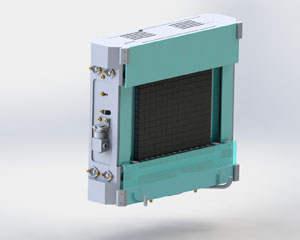

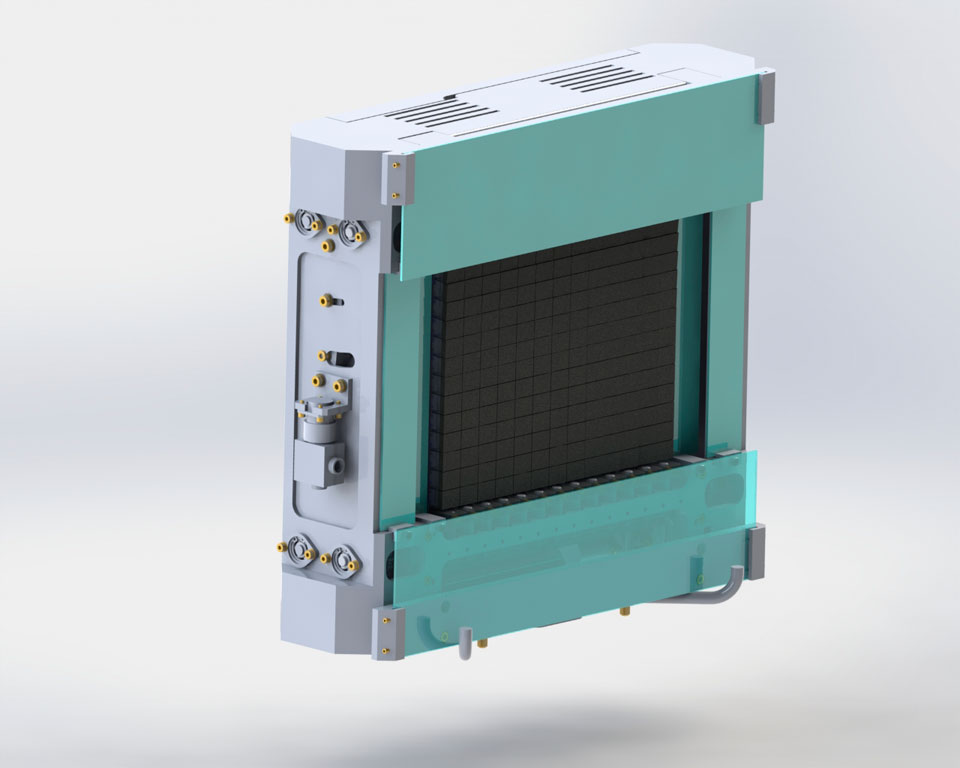

New Monochromator HOPG - THALES (Photo attached)

Charles University Prague - ILL
Variable double focusing device for monochromator HOPG

169 HOPG - crystals are arranged in 13 columns and 13 rows

Vertical and Horizontal focusing radius individually variable by means of two stepping motors

Crystal alignment: ILL - Neutron optics laboratory

Reference persons:

- Dr M. Boehm & S. Roux

Monochromator Silicium

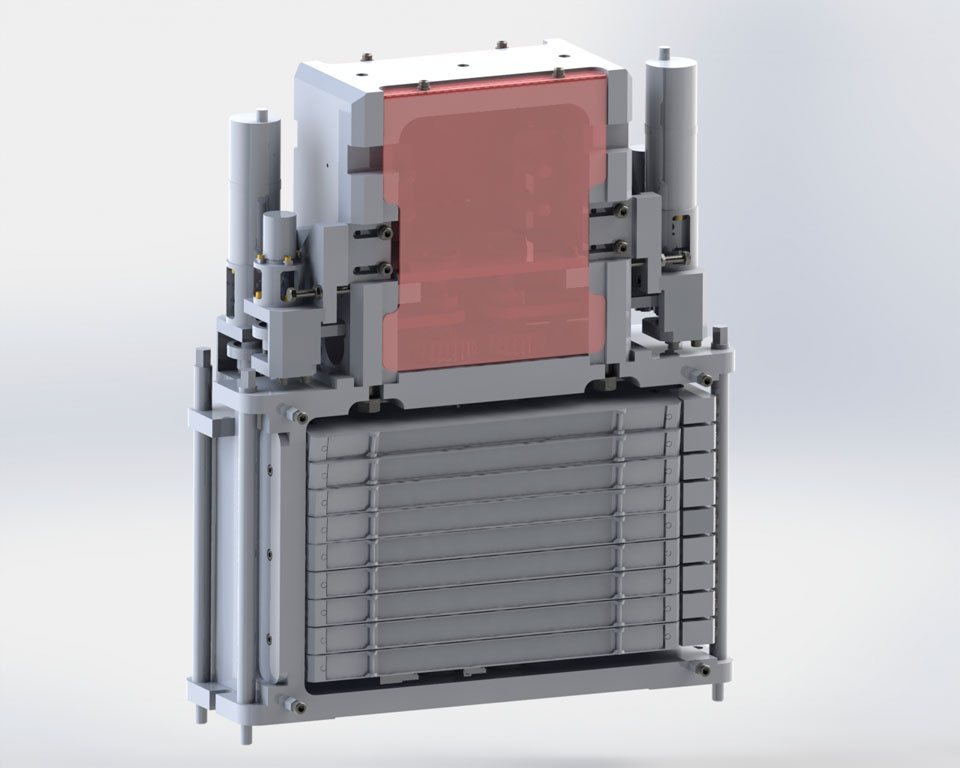

New Monochromator Silicium (111)

RWTH AACHEN / FRM2 - Monochromator POLI
Double bending device Monochromator Si and alignment of the crystals:

Number of Crystal rows (horizontal): 9 cassettes

Minimum horizontal curvature radius = 6m

Minimum vertical curvature radius = 0,5m at infinity

Supply and alignment of the crystals : ILL Neutron optics laboratory

Reference person:

- Dr V. Hutanu

Positioning components

All components are available indifferent sizes and in non-magnetic, vacuum, nuclear versions. All positioning movements are made by motor drives

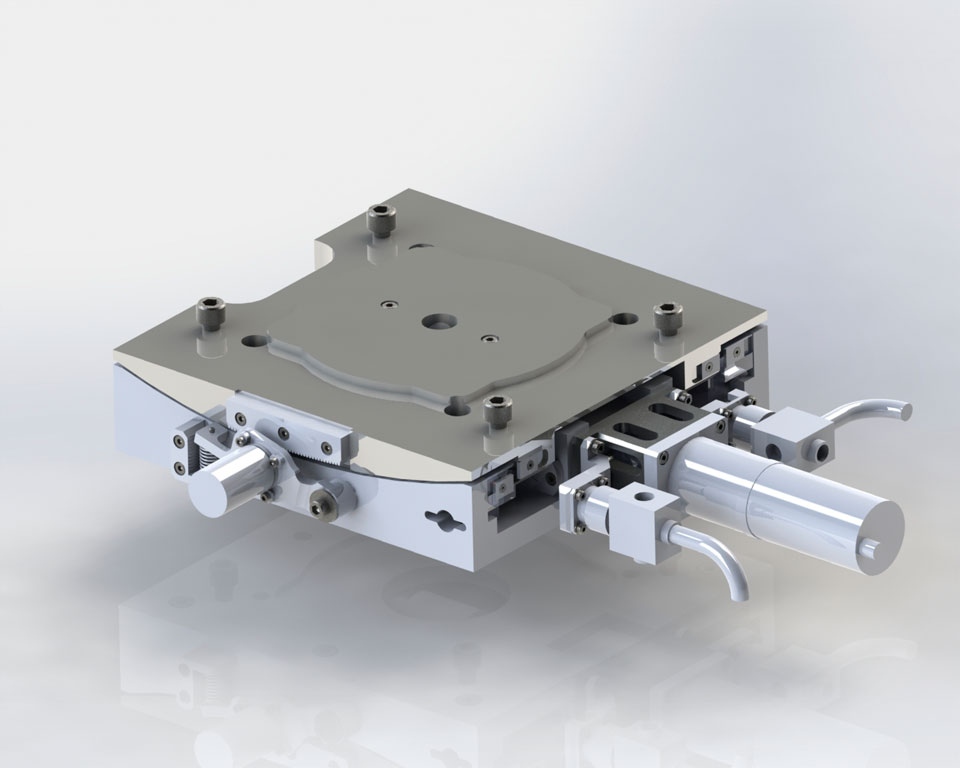

Cradle Goniometer "extra flat"

The cradle are designed for the positioning of instruments in the vertical planes.

Compact construction

Movement on ball bearings

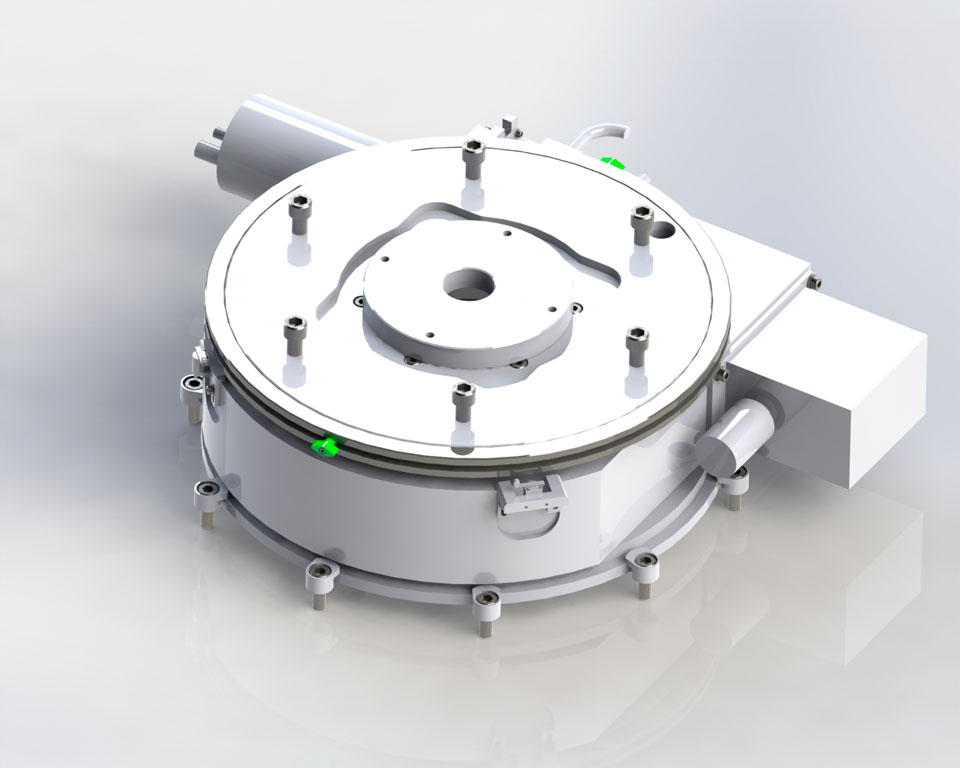

The turntable are originally designed for neutron spectrometers

Inquiries from other fields of applications - especially for experiments with X-rays and synchrotron radiation

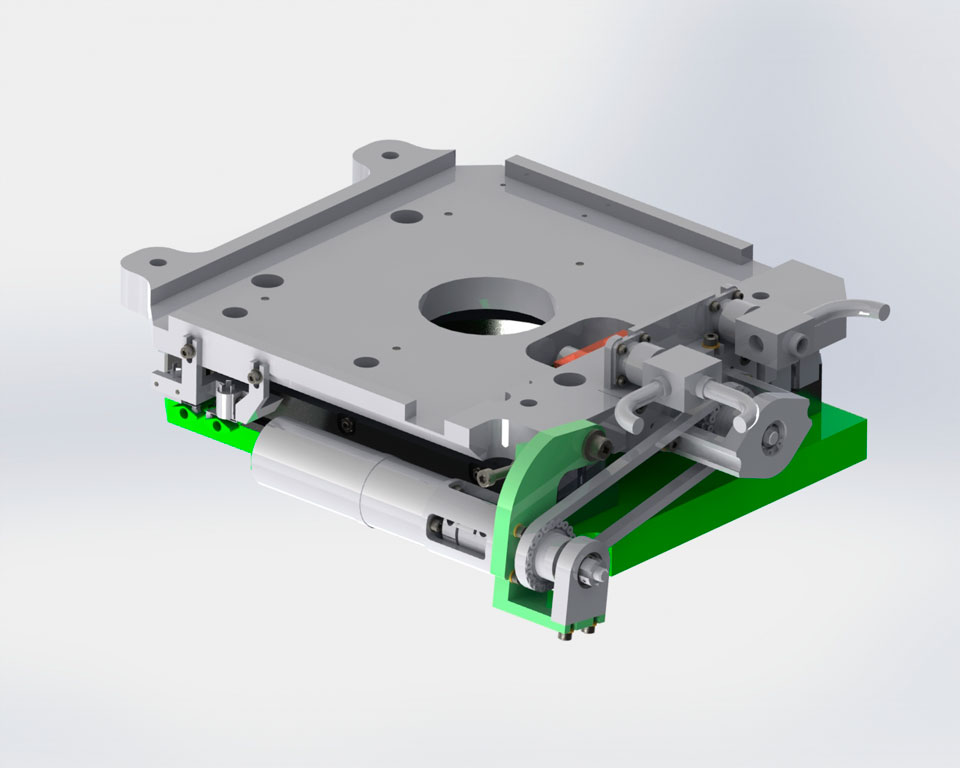

Linear table

For very precise translational displacements - the linear ball bearing and guideway assemblies are used. Those elements allow to build stages having extremly low frition, no stick-slip effect. They can take load in all directions and tilting movements about all axis.

The linear ball bearing and guideway assemblies can be used in single or the parallel guidance arrangements


Base modules

Very low friction movement by means of air cushion pad on the spectrometer floor.
These module allaw to bring the spectrometer axis into the scattered beams

Translational modules

The modules allow to change the distances between the spectrometer axis generally fixed distances are chosen, neighbouring axis as close as possible

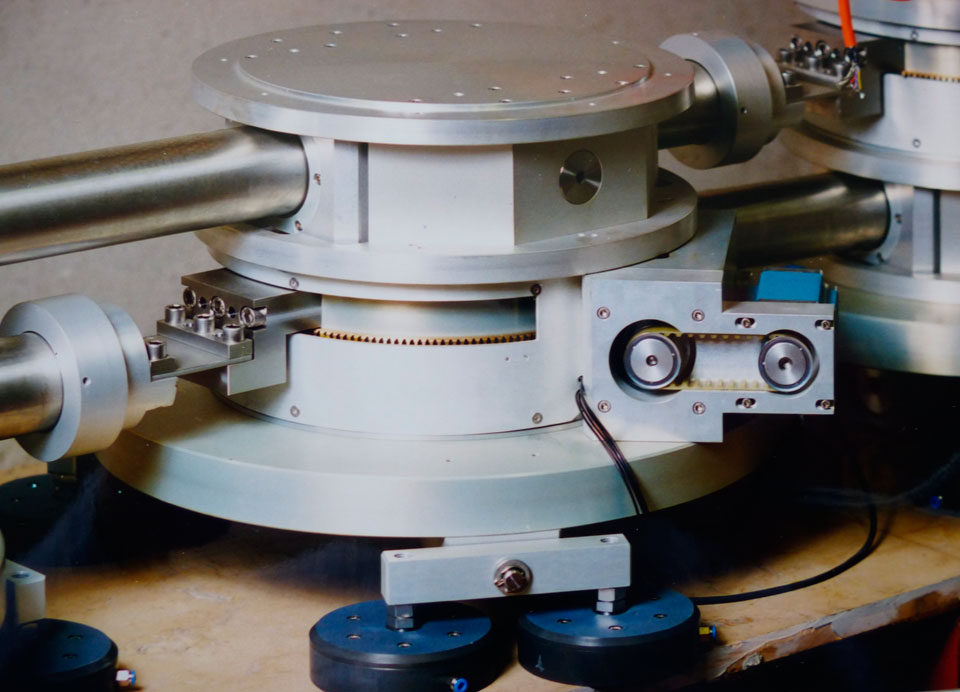

Rotational modules

RM400 and RM800 (worm gear drive) are connected by coupling arms with the proceeding spectrometer table. The RM accept encoder in the rotation axis

Radiation Shielding

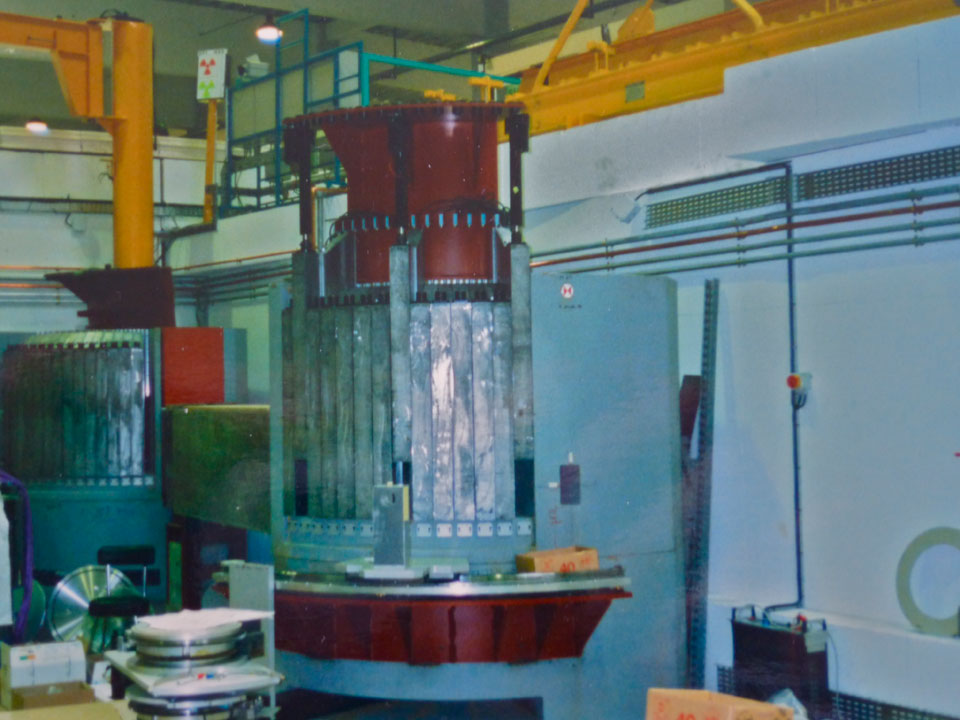

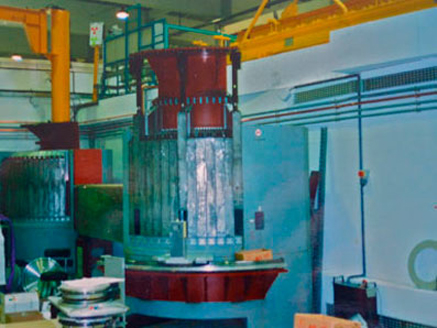

Design monochromators D23 and IN22 the H24 guide ILL (photo attached)

Engineering monochromator shielding

Project / Study


Civil Engineering

Automation - on site installation

Assembly - Test workshop

Getting started on site

Shielding materials

Concrete block - density 5,2 and 3,5

Movable blocks lead and blocks Polyethylene


Sample environment

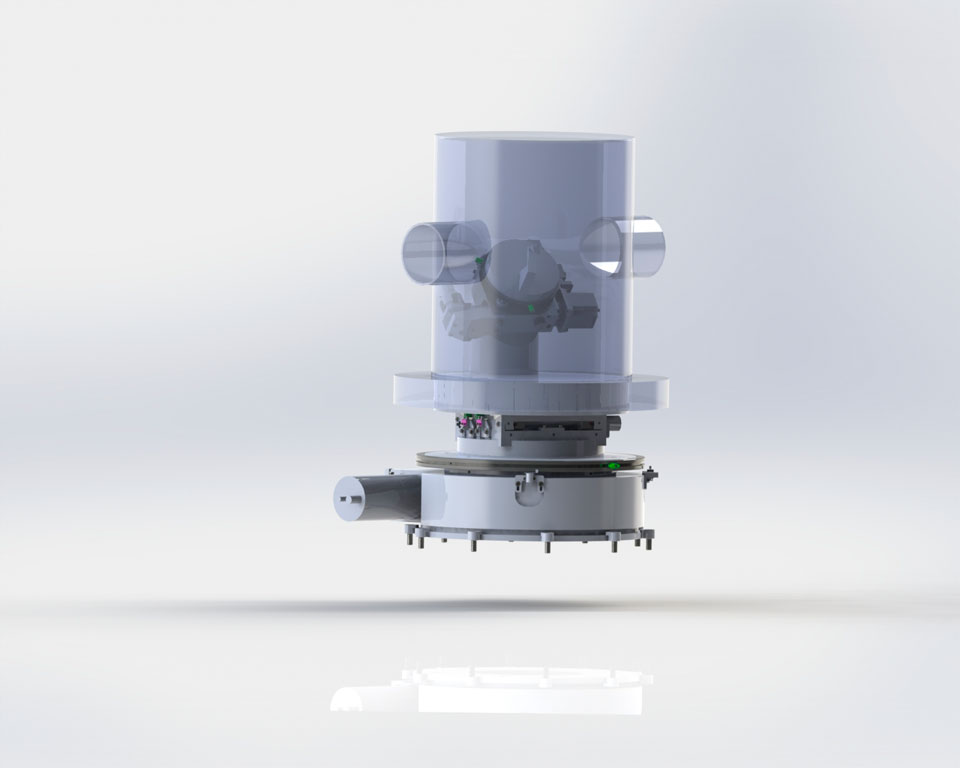

Pass Sealing

All positioning elements are outside of the vacuum chamber and transmitted to the sample by vacuum leadthrough.

The components are available indifferent sizes


Synchrotron Soleil - Instrument MARS - Dr B. Sitaud - H. Hermange

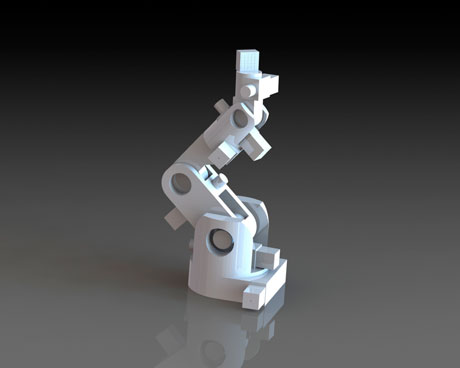

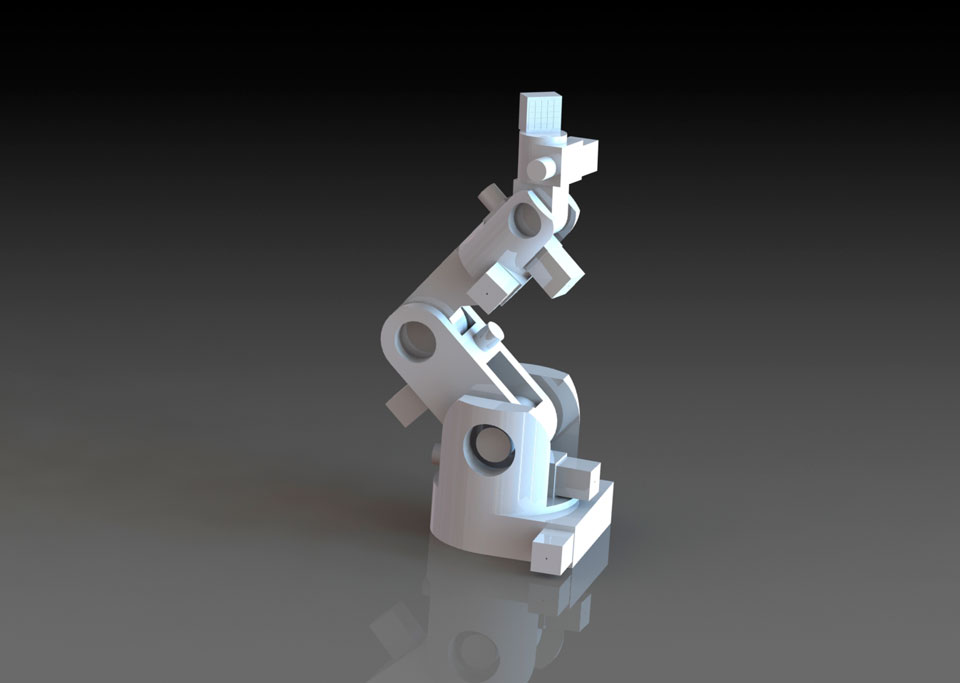

6 axis Robot - Sample holder - Innovation

6 degrees of freedom X-Y-Z: stoke +/-50mm - Omega 360° - Double tilt +/-90°

Moved by stepper motors - encoders

Be connected in series in several versions

No materials in the beam
